Cranborne Audio Carnaby HE2 Harmonic EQ
Description

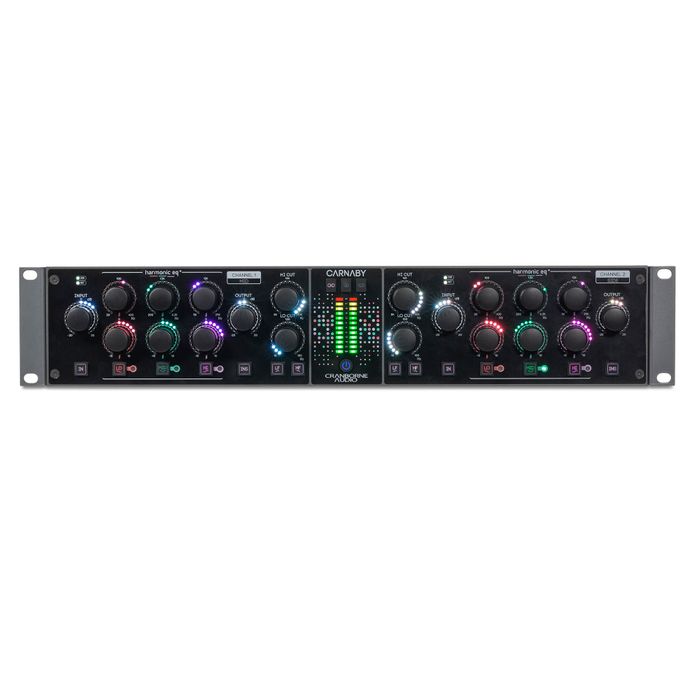

Carnaby HE2 is a 2u 19-Inch rack, 2-channel 3-band parametric EQ, an evolution of the Carnaby 500.
The Carnaby HE2 HarmonicEQ® utilises the same unique and revolutionary EQ concept found in Carnaby 500, using harmonic saturation to boost and cut frequency content. Enhance your sources, stems and mixes with genuine analogue harmonic saturation with the feel, familiarity, and control of an equaliser. However, the concept is taken even further with Carnaby HE2.
3-Band Parametric EQ With More
Whether being used for Stereo, Dual Mono or Mid-Side processing, Carnaby HE2 features 3 bypassable, interactive bands of HarmonicEQ® per channel. Each band has 10dB of boost/cut and its own sweepable and overlapping frequency controls. As with Carnaby 500, each of Carnaby HE2s bands has a unique blend of harmonic content suited to its frequency band to achieve maximum musicality.
The HI band has a frequency range from 5kHz all the way to 25kHz and uses smooth saturation to naturally extend high frequencies beyond the audio band for ultimate air and breath on vocals and acoustic instruments.
The LO band has a frequency range of 420Hz down to 20Hz and uses hard-clipping saturation to extend sub-harmonic frequencies into the audible low-end - perfect for subtle low-end warming or extreme sub-harmonic saturation.
The MID band is a peaking filter with a fixed Q and a wide sweepable frequency range from 200Hz up to 6.2kHz. It uses saturation to add harmonic emphasis to the source anywhere in the frequency range.
Unlike other EQs, Carnaby HE2 has a dynamic response and increases in total boost/cut and harmonics as the circuits are driven harder. An Input and Output level control on each band allows for ±20dB of level adjustment, enabling you to drive Carnaby HE2 harder with the input control for more saturation and distortion effects, or back it off for a cleaner EQ when needed.
Fully Digitally-Controlled with USB and Network options:
Carnaby HE2 takes control to a whole new level allowing all buttons and controls of the unit to be controlled remotely via USB or an Ethernet network. Our control plugin seamlessly integrates with the Carnaby HE2 hardware via the USB or NET ports, allowing for convenient real-time control and recall from within your DAW. It also facilitates the independent saving and loading of presets.
Key Features:
- 3-band HarmonicEQ®: Custom analogue EQ circuit and unique ‘saturation-core’ technology for harmonically-enriched EQ effects.
- Versatile Operation: Carnaby HE2 supports stereo & dual-mono configurations, as well as mid-side encoding for enhanced control over stereo imaging.
- Intuitive Interface: Equipped with LED rings and digital encoders, the Carnaby HE2 ensures a user-friendly and visually intuitive experience that ensures any remote control operation is reflected on the Carnaby HE2’s front panel.
- Remote Control & Recall: Utilise USB and Network control and recall via the included plugin to seamlessly retrieve your preferred settings, recall previous settings, and control your Carnaby HE2 remotely right from your DAW – providing a streamlined workflow for the modern studio environment.
- Per-Band Bypass: Achieve precise tonal sculpting by independently bypassing each of the 3 frequency bands, allowing you to audition and fine-tune your settings.
- Extended HF & LF shaping: Facilitating further sound-sculpting, precise HF and LF cut controls with individual bypass controls help further tame and shape your audio.
- Outboard Processing Integration: Carnaby HE2 caters to your creativity with per-channel inserts for outboard processing, empowering you to easily expand your workflow.
- Internal PSU: Carnaby HE2 features an internal switchable mains power-supply for 100 - 240V operation.
