INOGENI 4KXUSB3 Ultra HDMI to USB 3.0 Video Capture Card
Description

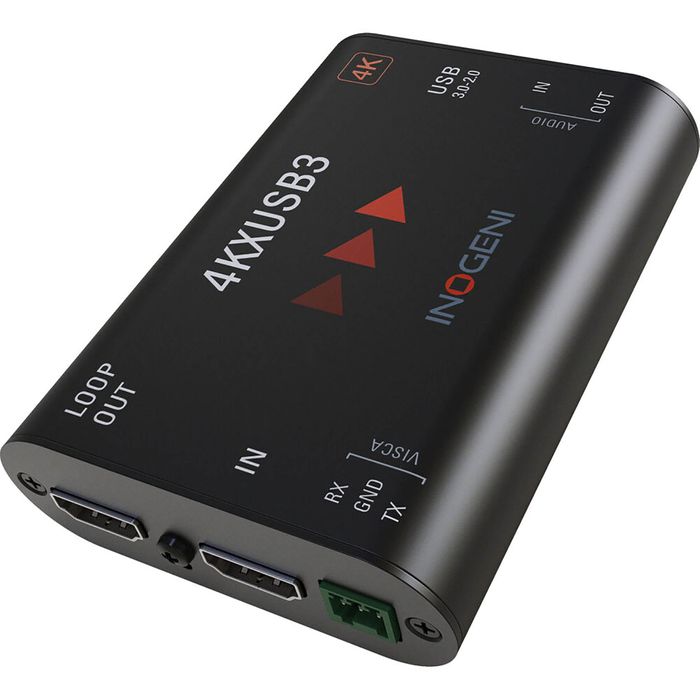

The 4KXUSB3 Ultra HD to USB 3.0 professional camera converter with an HDMI loop and VISCA port offers a wide range of capabilities.
The Inogeni 4K Ultra HDMI to USB 3.0 Video Capture Card allows you to capture uncompressed video with audio from your camera's HDMI output on your PC or via the 3.5mm analog audio jack for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features an HDMI input, HDMI loop-through output, and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OS X, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p.
The converter supports 4K resolutions up to 30 fps, and 1080p resolutions up to 60 fps as well as most computer graphic formats. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0 while all UHD resolution signals are converted to 4:2:0 12-bit. The embedded audio in the HDMI signal is extracted and output as two-channel LPCM. A USB 3.0 cable comes included.
Key Features:
- Compatible with Direct Show
- Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats
- Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps
- HDMI audio support: Embedded audio in the HDMI signals is extracted and output as two-channel LPCM
- Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD up-scaling not supported)
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings; these controls work on all formats below 4K, but not 4K
- Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
- Compatible with Zoom Rooms
