Marshall CV380-CS Compact 8MP UHD Camera
Description

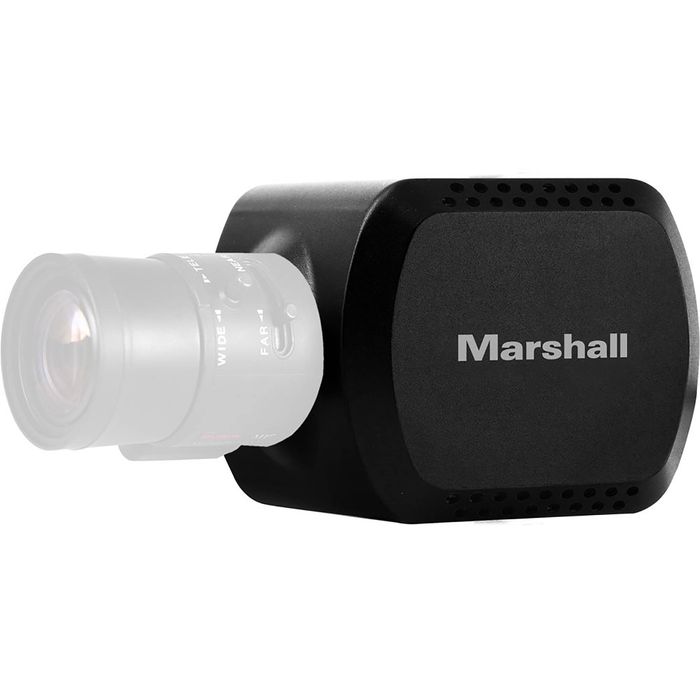

Marshall Electronics CV380-CS 4K 8.5MP 6G-SDI & HDMI CS/C-Mount Compact Camera
The CV380-CS 4K 8.5MP 6G-SDI & HDMI CS/C-Mount Compact Camera from Marshall Electronics captures up to DCI 4K resolution video at 30 fps and offers simultaneous 6G/3G/HD-SDI and HDMI output. Featuring a compact form factor, the CV380-CS is designed as a discrete solution for broadcast, house of worship, live event, courtroom, remote learning, and other applications. A CS/C lens mount and 4-pin auto iris connector provide support for a wide variety of DC auto iris varifocal and fixed focal length lenses.
The camera can be adjusted and matched to other cameras remotely via an RS-485 connection offered on an included breakout cable, or using an OSD menu joystick integrated on the same cable. Image adjustments can be made to white balance, gain, tone level (red/blue), pedestal (blacks), exposure, gamma, and other factors. The camera is mountable via a universal 1/4"-20 threaded mounting hole on the bottom.
Key Features:
- Capture up to DCI 4K resolution video at 30 fps
- Simultaneous 6G/3G/HD-SDI and HDMI output
- CS/C lens mount and 4-pin auto iris connector
- RS-485 connection and integrated OSD menu joystick, as well as audio mic and line level inputs, provided on a breakout cable
- Remote adjust and match control
- 1/4"-20 threaded mounting hole
