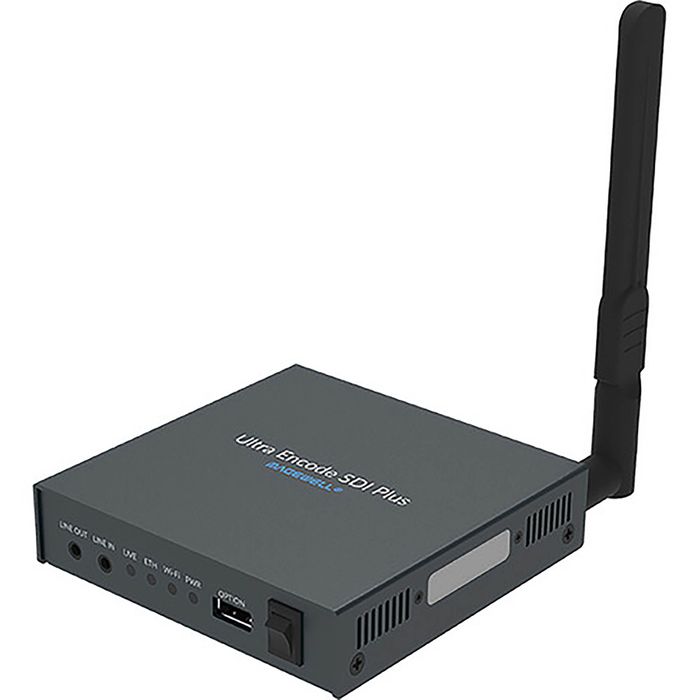

Magewell Ultra Encode SDI Plus
Description
Stream up to DCI 4K video from your SDI source device with the Ultra Encode SDI Plus Universal 4K Encoder from Magewell. The versatile compact device supports input resolutions up to DCI 4K60 with a 4:2:0 color space and DCI 4K30 with 4:4:4 or 4:2:2, encoded to NDI|HX2, NDI|HX3, and H.264/H.265, and live streamed via Wi-Fi or Ethernet to a wide range of IP destinations, including Facebook Live, Twitch, and YouTube.
The unit offers an SDI input and respective loop-through output as well as two USB-A ports that enable you to add optional modems to facilitate 4G/5G streaming worldwide. Supported streaming protocols include various flavors of NDI, RTMP, RTMPS, SRT, and HLS. The unit can be remotely controlled via a web browser on a computer or smartphone and powered via PoE (Power over Ethernet), and it can be mounted using the included T-bracket.
Key Features:
- Support for up to 4096x2160 30fps input and loopthrough signals
- Input & loopthrough 16-Channel SDI embedded audio
- Input audio from 3.5 mm LINE IN
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
- Natively support Facebook, Twitch, YouTube and WOWZA
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
- Allow simultaneous 6 sessions over multiple streaming protocols
- Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
- Automatically upload recorded files to remote file storage platform
- Video recordings in MP4, MOV or TS format
- Normal recording and loop recording supported
- Support for recording schedule
