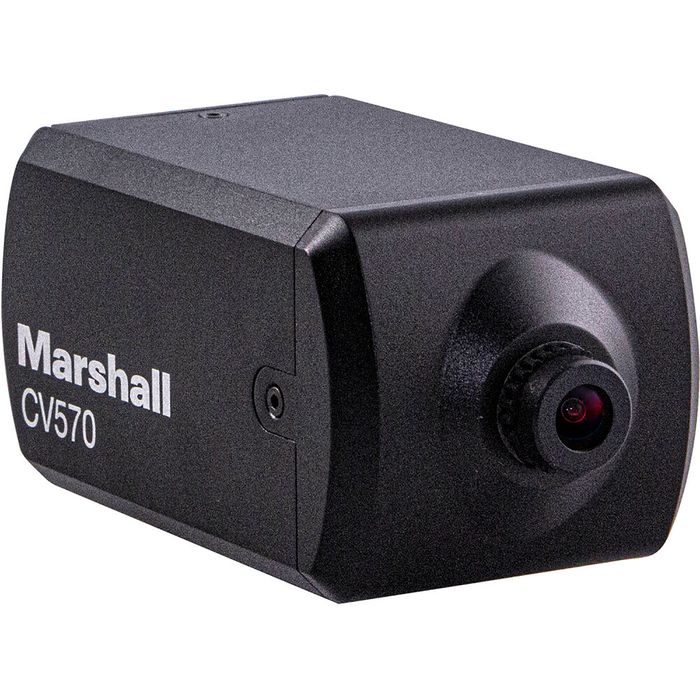

Marshall CV570 Miniature HD Camera with NDI|HX3, SRT & HDMI
Description
The Marshall CV570 networkable POV camera is built around a next generation Sony sensor with over 2.13 million pixels, larger pixel size and square pixel array. Miniature CV570 delivers exceptional 10 bit 4:2:2 video performance from a durable aluminum alloy body through NDI HX3 workflows, HDMI and standard IP with SRT. The new Sony sensors offer rich color accurate video with improved low light sensitivity, refined remote adjust capability and flexible interchangeable lenses. Choose full HD resolutions up to 1080p (progressive), 720p (progressive) and 1080i (interlaced) with a wide selection of framerates available in 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps serving a variety of Broadcast and proAV applications worldwide.
NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec
Featuring the extremely efficient NDI HX3 codecs gives the miniature CV570 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.
Interchangeable M12 Lenses
Marshall CV570 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.
Durable, Flexible, Powerful
The miniature CV570 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet miniature size with rear I/O protection. CV570 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.
Key Features:
- 2.13 Megapixel Sony sensor with larger pixels and square pixel array
- Interchangeable M12 lens mount comes with 4.0mm - 85º H.AOV lens
- HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs
- One-cable to camera option for power (PoE), video, audio, and remote setting control
- 1920x1080p, 1920x1080i & 1280x720p resolutions available
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage
- Power Draw: 6W with 7~15V flexibility or PoE over Cat cable
