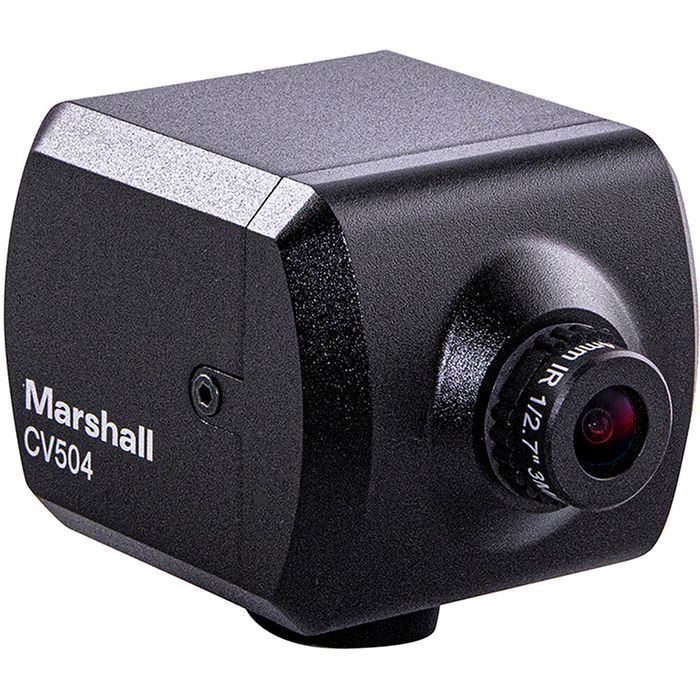

Marshall CV504 Full HD Micro POV Camera
Description
The Marshall CV504 POV camera is built around a next generation Sony sensor with over 2 million pixels and larger pixels. The micro CV504 delivers exceptional 10 bit 4:2:2 video performance (BT.709) from a durable aluminum alloy body through 3GSDI (BNC) output and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability.
New Sony 1/2.8" (6.46mm) Solid-Sate Image Sensors
The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.
Interchangeable M12 Lenses
Marshall CV504 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.
Durable, Flexible, Powerful
The durable CV504 body is chiseled from one block of aluminum alloy with rear panel connector protection. CV504 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.
Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
Key Features:
- 2.2 Megapixel Sony sensor with square pixel array
- Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV
- 3GSDI (BNC) 10bit, 4:2:2, BT.709 with remote adjust & match
- 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
- Micro-USB port for field upgradeable firmware via PC
- Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
- Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
- Power: 12V+/-10% drawing 2.64W (max 6W)
