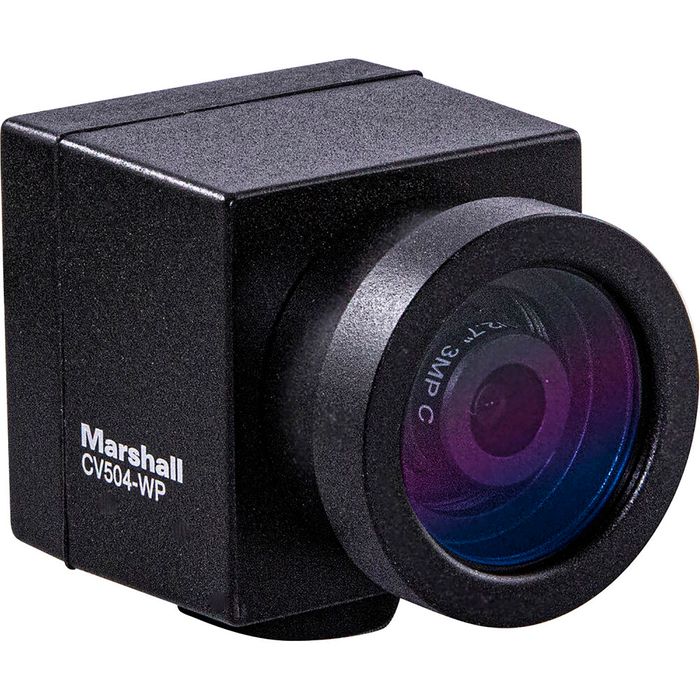

Marshall CV504-WP All-Weather Full HD Micro POV Camera
Description
The Marshall CV504-WP All-Weather Full HD Micro POV Camera provides a broadcast-quality video solution with a compact form factor, and is rated IP67 for resisting the elements. The CV504-WP is designed with professionals in mind, and delivers crisp video to fit the individual needs of any production. The camera is built around a next-generation Sony 2.2MP IMX CMOS sensor capable of recording images at up to 60 fps in low-light situations with rich color accuracy via 3G-SDI output. Marshall's M12 interchangeable lens system offers a variety of focal lengths for both prime and variable options. Included is an M12 4mm prime lens with an 85° horizontal viewing angle.
Adapting to different environments and their requirements is easy with the camera's highly customizable settings, which may be adjusted with an optional Marshall controller, Camera Control software, or another third-party system (available separately). Infrared wavelengths are captured in Night Mode, sustaining the high definition of the CV504 in near-complete darkness. These high-fidelity features are protected by a durable aluminum alloy housing that is both compact and lightweight. This all-weather configuration of the CV504 platform has a built-in lens cover and 10' breakout cable to maintain an IP67 resistance rating.
New Sony 1/2.8" (6.46mm) Solid-Sate Image Sensors
The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.
Interchangeable M12 Lenses
Marshall CV504 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application..
Durable, Flexible, Powerful
The durable all-weather CV504-WP body is chiseled from one block of aluminum alloy with 10-foot (3m) breakout cable. CV504-WP operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.
Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
Key Features:
- 2.2 Megapixel Sony sensor with square pixel array and larger pixels
- Interchangeable M12 lens mount, comes with 4.0mm - 85° H.AOV lens
- 10-foot (3 meter) weatherproof IP67 breakout cable to BNC, RS485, power
- 3GSDI (10bit, 4:2:2, BT.709) reliability with remote adjust & match capability
- 1920x1080p, 1920x1080i & 1280x720p resolutions available
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Remote adjust & match via CV-RCP-V2, Camera Control Software and 3rd party sourcessuch as Cyanview, Skaarhoj and more
- Power Draw: 2.64W (max 6W) with 7~15V flexibility
