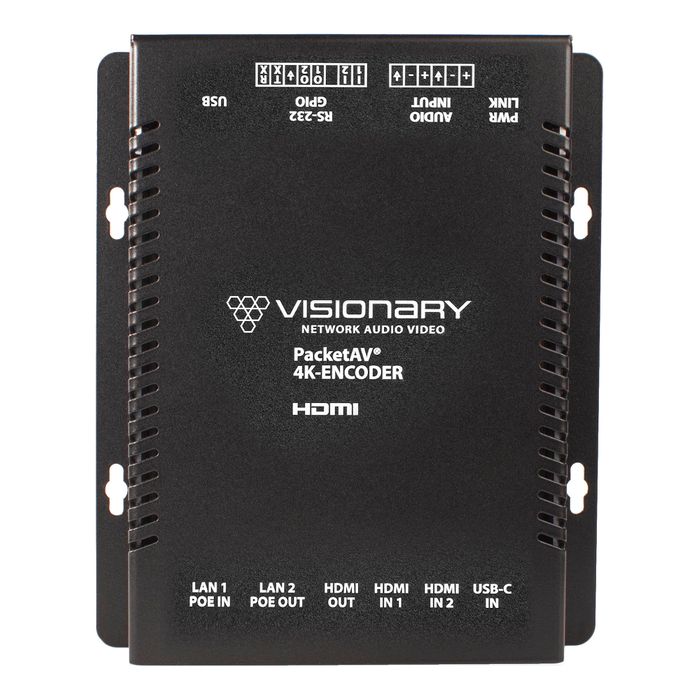

Visionary Solutions E4200 Encoder
Description
PacketAV® Duet has been nothing short of a paradigm shift for networked AV. True convergence; a single platform to support Dante®/AES67 * and Video over IP. Building on their success and wide adoption, the next generation of PacketAV® Duet endpoints continue to provide powerful 4K UHD Video and Dante®/AES67 * Audio - now over a single Gigabit Ethernet port, with USB-C connectivity and other enhanced features.
Visionary’s PoE 4K UHD over IP cinema quality, ultra-low latency [~1 frame - visually lossless], encoders and decoders bypass the constraints of traditional switch matrix distribution systems by continuing to harness the exibility and scalability of converged IP networks.
With the growing demand for 4K UHD video, professional AV designers and IT directors – in an increasingly converged AV/IT environment – have been using Visionary’s products as an alternative to conventional distribution systems.
Features Visionary’s PackeTV® and PacketAV® products can be deployed on any industry standard IP network. They can be used on existing enterprise IP networks or a physically separate parallel network [private network] to o oad tra c, using the same network protocols, methods, and devices but without intermingling of video tra c with data or voice; with equal ease of installation.
Key Features:
- Single Main Gigabit LAN Port for 4K UHD Video, Dante®/AES67 * , Control, and Powered Device (PD)
- Ethernet Expansion Port - Power Sourcing Equipment (PSE)
- Power connected devices with PoE pass-through
- Independent Routing
- Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built-in AI
- nterprise Level Security –AES Encryption, 802.1x, HTTPS, SSH
- Enterprise applications demand a secure Network AV solutio
- Encoder: USB-C Input
- Connect easily and share media from your Mac, Laptop, Tablet, Mobile, and Other USB-C enabled devices
- Note: Not all devices will be compatible; Source devices must support DisplayPort Alt Mode for USB Type-C or Thunderbolt. - Dynamic OSD text overlay capabilities
- Mass Configuration
- LLDP Support
- QoS Support
- Control
- Vision Lite Control Software
- 3rd Party Control Drivers [Crestron, QSC, Symetrix, RTI, etc.]
- *API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators - Seamless Fast Switching
- GPIO - 2x2 I/O User Configurable
- USB 2.0 over IP (KVM), RS-232 over IP, IR over IP, and CEC over IP
- KVM Multi Display Roaming
- Built in Video Wall Functions
- Auto Video Scaler
- HDMI 2.0 and HDCP 2.2 Compliant
