Rf Optic - 20GHz Rf over Fibre Solution 1310nm CW Pre-Amp
Description

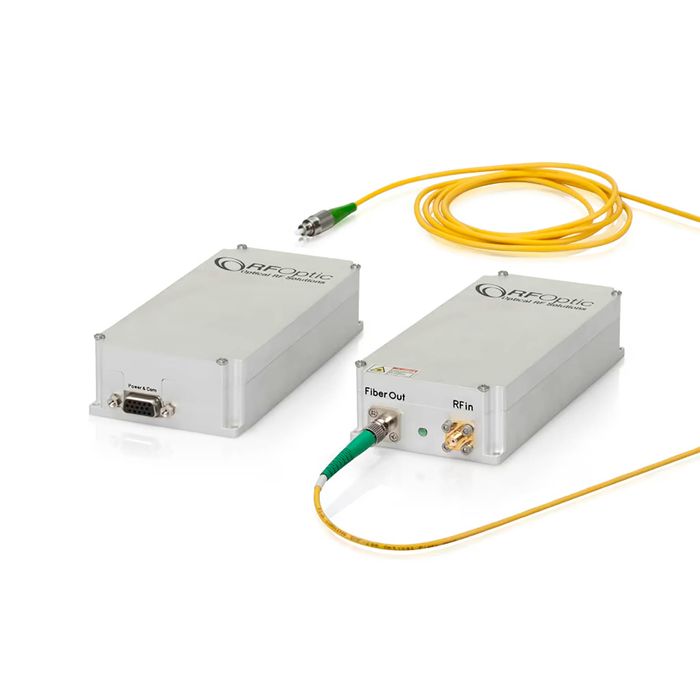

The Tx unit uses an optical transmitter to convert RF to optical signal. The Rx unit converts then optical signal to RF signal. The two units are connected by the customer’s fiber.
RF Optic’s RF over Fiber modules are suitable for telecommunications and radar applications.
Satellite, point-to-point remote antennas, can be connected from several meters to many kilometers away from the control room. Base stations can be connected through fiber to remote sector antennas.
Broadcasters can easily distribute their full RF streams over fiber to remote locations. This eliminates the need for complex equipment to be installed in far and hard to reach locations.
With our wide-band units, cable operators can locate their broadcasting equipment centrally. The RF is connected through fiber to the remote location. This reducing the CAPEX and OPEX of their networks significantly.
Key Features:
- Frequency Range: 1-20GHz
- Low Noise RFoF HSFDR version
- Low spurious level
- High SFDR 112 dB/Hz
- Excellent Phase Noise
- Excellent phase linearity
All high SFDR modules have the following unique features:
- Operating temperature -45 to 75 degrees, standard is -20°C to 70°C
- Gain Stability +/- 1.5dB between -45°C to 70°C
- Sub 1us fast modulation option
- Flat, full-band adjustable programmable attenuation.
