Rf Optic 6.0GHz Rf over Fibre Solution 1550nm
Description
Introducing the RF Optic 6.0GHz 1550nm Rf over Fibre Solution, a cutting-edge product designed to revolutionize RF signal transmission.

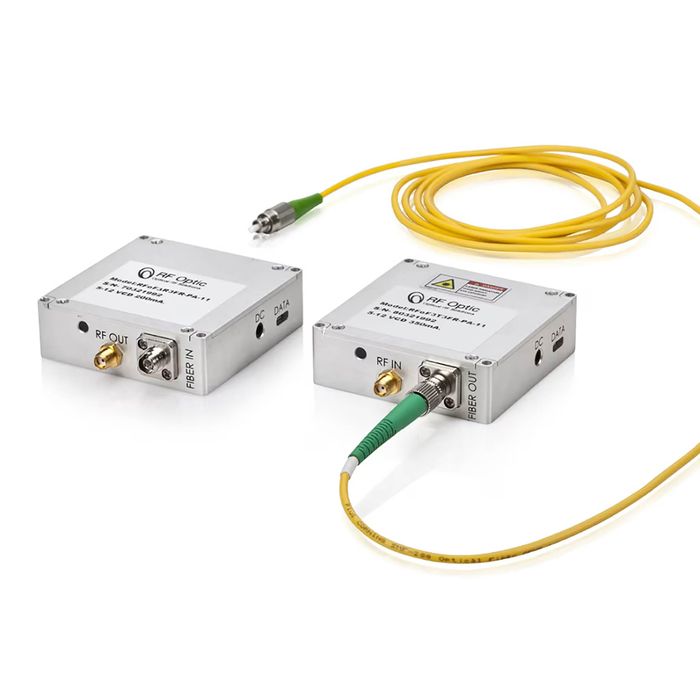

RF Optic’s palm-sized modules are specifically designed to convert RF signals into optical signals, facilitating long-distance transmission. The Tx unit houses an optical transmitter that transforms RF into optical signals, while the Rx unit reconverts them back to RF. These units are interconnected via single-mode fibre. Notably, most modules are available in both 1310 and 1550mn wavelengths.
Both the Tx and Rx units come equipped with LNAs and variable attenuators, allowing users to fine-tune the Noise Figure, Input P1dB, and IP3 across a wide dynamic range. The LNA, accessible through the Rf over Fibre Software, supports RF input power in the range of -100 dBm/1MHz for wide-band applications and boasts a low Noise Figure of 6 dB. The RF over Fibre link offers exceptional gain flatness with 0.5dB gain tracking between different links. For applications demanding temperature stability, a unique algorithm ensures 0.5 dB consistency over 100°C.
Key Features:
- A broad bandwidth ranging from 100kHz to 6.0GHz.
- Utilizes single-mode fibre for efficient signal transmission.
- Requires a 5-15VDC power supply (not included).
- Next-generation RFoF modules that bring about significant performance improvements.
- Enhanced linearity, superior gain flatness, and comprehensive Tx, Rx, and Link Gain Control.
- Achieves a noise figure as low as 6 dB with LNA, ensuring clarity even for very low incoming signals.
- Equipped with an internal microcontroller, enabling both RF and optical control through software.
- Features end-to-end diagnostics, significantly reducing installation and maintenance time.
- A special algorithm ensures a gain variation S21(fo) of ±1 dB for a 90° C variation.
- Remote management capabilities through a GUI installed on a PC.
- Available in both 50 Ohm and 75 Ohm impedances.
- Multiple mounting solutions, including rack mount and outdoor options.
- An optional BiasT feature (5VDC -200mA).
- Also available in the 1310nm wavelength.
- Each purchase includes a ‘pair’ of devices: Tx and Rx.
- Suitable for a wide range of applications, including Defence, Broadcast, Satellite Communications, Marine, Mining, LMR, and Telco - LTE.
