AJA openGear 2RU Rackmount Frame for 20 openGear Cards
Description
OG-X-FR
OpenGear is an open-architecture, modular frame system designed by Ross Video and supported by a diverse range of terminal equipment manufacturers, including AJA.

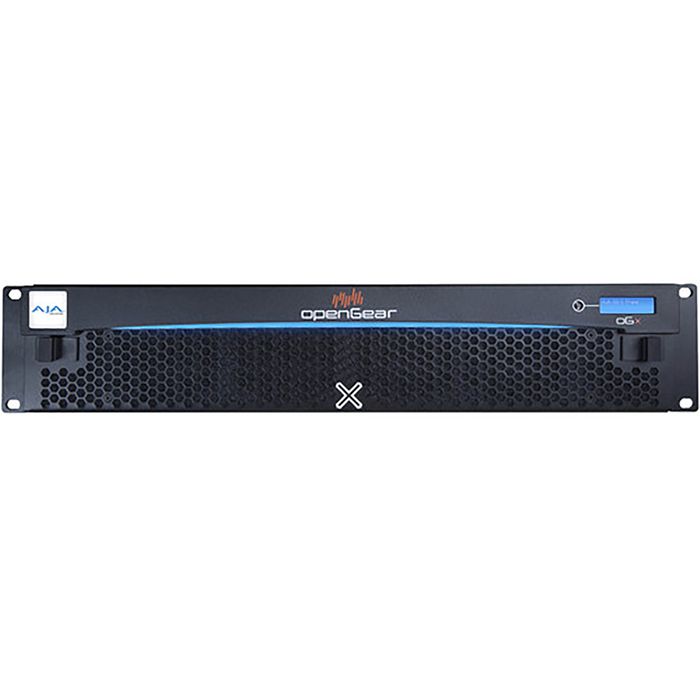

The AJA OG-X-FR is a 2RU high openGear frame which is compatible with any openGear card and offers Dashboard support for the latest AJA Dashboard compatible openGear cards. The frame has a 20-slot capacity with excellent cooling capabilities for high-density applications and compatibility with advanced openGear connectivity options for supported cards.
Smart Control
One control system unites all openGear suppliers: DashBoard for setup, real-time control, monitoring, and tools for creating customized workflow through CustomPanels. The optional Advanced Networking controller from Ross features DataSafe, which automatically saves and restores settings if a module is swapped.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
DashBoard Software
Ross DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.
Cooling
While many of AJA's openGear cards are energy-efficient, the high-density nature of rackmount cards can generate heat in a small space. Integrated fans in the OG-X-FR keep internal components operating at acceptable temperatures, leading to improved reliability and longer card life.
OG-X-FR offers more power and cooling for the most demanding UltraHD, 12G-SDI and IP workloads.
Key Features:
• 2RU frame with capacity for up to 20 openGear cards
• 600 watt power supply with integral cooling, optional 2nd power supply
• Front LCD display for name, IP address and fault identification
• FrameGlow customized identification and alarming
• Support for analog, digital, video, audio, SDI and IP modules in the same frame
• Removable front door and air filter for easy fan servicing and maintenance
• Standard DashBoard control system for setup, control and monitoring
• Includes preinstalled standard network card (MFC-8322-S)
