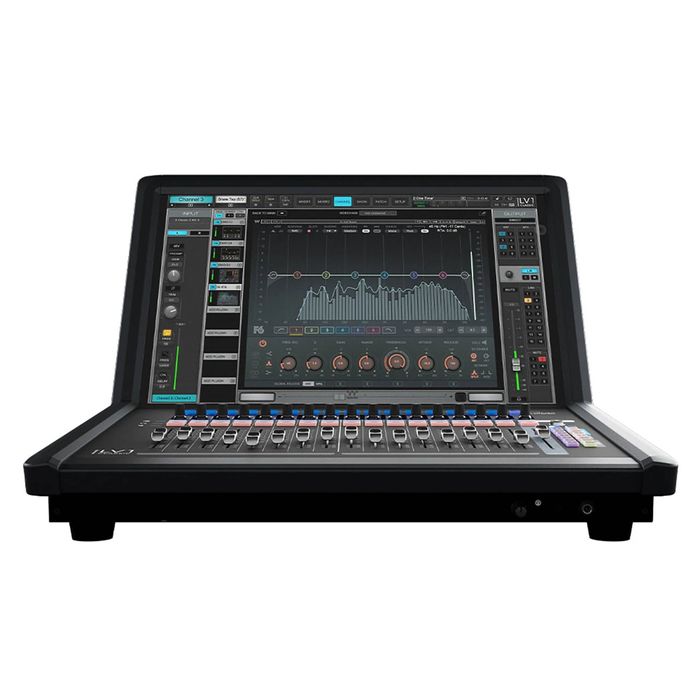

Waves eMotion LV1 Classic Live Mixer
Description
COMING SOON!
Introducing the First Fully Integrated Live Mixing Console by Waves
64 stereo channels and 44 stereo buses of industry-leading sound. 16 inputs powered by Waves Signature Preamps. The live sound industry’s deepest processing, built into the console. Intuitive workflow, easy scalability, maximum portability.
Now, for the first time, all of these advantages of the LV1 live mixing platform are available in a classic hardware form factor.
eMotion LV1 Classic builds upon the industry-proven sound quality of the Waves LV1 mixer engine, and delivers its benefits in the preferred console workflow of live sound engineers worldwide.
With a pristine-sounding mixer engine, quick-access UI combining a large 21.5” multi-touch screen with powerful tactile control, the industry’s most powerful integration of state-of-the-art processing, and robust physical build—LV1 Classic packs more live mixing power into a compact console than ever before.
Key Features:
• 64 mono/stereo input channels
• 44 mono/stereo buses: 8 groups, 24 auxes, 8 matrices, 3 master, cue
• Double Precision 32-bit floating point mix engine (44.1–96 kHz)
• Latency as low as 0.8 ms
• 21.5” multi-touch screen with 1000 Nit brightness
• 16+1 motorized 100 mm faders
• 16+1 precision encoders, with mini-displays including per-channel LCD metering, and Select/Mute/Solo keys
• 16 layers with utility keys and tempo pad
• 16+2 customizable keys
• 16 Waves Signature Preamps with mic/line inputs
• 12 line outputs, 2 AES3 outputs, AES3 SRC input
• Built-in SoundGrid server (Extreme Server-grade) handles processing
• Add more I/O: Up to 14 SoundGrid-compatible devices, including Dante and MADI convertors
• Add up to 3 processing servers and 4 backup servers
• 4 SoundGrid switch ports: 2 Ethercon + 2 Rj45
• Record 16 tracks locally to USB / 128 tracks to remote computers
• Stereo playback from USB
• 8-slot rack hosts 8 plugins per input channel + all mix channels
• Plugins included with the console: Waves Tune Real-Time, F6 Dynamic EQ, eMo Q4 EQ, eMo D5 Dynamics, eMo F4 Filter, GEQ, X-FDBK, Primary Source Expander, R-Comp, R-Bass, • H-Delay, Doubler, R-Verb, TrueVerb, GTR3, Magma Tube Channel Strip, eMo Generator
• Processing upgrades include 160 additional award-winning Waves plugins, immersive in-ear mixing (eMo IEM), Dugan auto-mixing
• Custom options for mixing layout
• Intuitive control over each channel’s parameters
• Patch system-wide connections
• Custom colors per channel
• Unicode multi-language support
• Up to 1000 scenes with Recall Safe and Scope Filters
• 8 Mute groups and 16 Link DCAs with Spill function
• Digital preamp control with local V-Gain tracking for sharing
• Multiple outputs per channel with delay alignment controls
• Remote control apps for mobile & tablet, for both FOH and stage
• Size: 22” (560 mm) x 15.8” (402 mm) x 22.1” (561 mm)
• Weight: 38 lbs. (17.2 kg)
The LV1 Mix Engine: Pristine Clarity, Maximum Headroom
eMotion LV1 Classic boasts a double-precision 32-bit float mix engine that delivers unmatched clarity and headroom at 44.1–96 kHz. Renowned in the live sound industry, the proprietary LV1 mix engine leverages Waves’ Tech Grammy®-winning expertise in digital signal processing to deliver industry-leading sound quality.
Powered by Waves Signature Preamps
LV1 Classic’s 16 inputs are powered by original-design, digitally controlled Waves Signature Preamps. With fully discrete analog circuits, these pristine preamps deliver maximum clarity and headroom, an incredibly low noise floor, and lightning-fast transient response. The added HMX feature allows you to choose between pure transparent preamp sound and rich harmonic enhancement per input.
