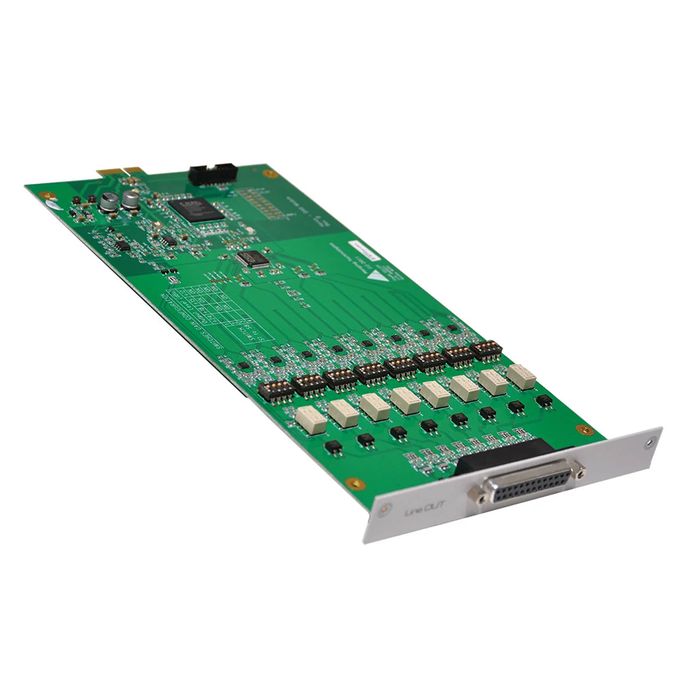

Merging Technologies IOM-H-DA8P Module for Horus/HAPI
Description
The Merging Technologies IOM-H-DA8P Module for Horus/HAPI (up to DSD) has consistently shown in testing to be the quietest multichannel D/A conversion modules available anywhere.
The original design of the 8-channel DA converter board has been a great tool in setting a standard for critical listening and monitoring for all users, and its design hasn't seen the need for major changes for the past 7 years. It was felt that now was the time to replace the DA converter chip from ESS with their latest offering, which means the new production Run 11 is now incorporating the ES9028PRO instead of the former ES9008.
This latest change allows users to benefit from even more impressive specs with typical Dynamic Range of 125 dB (> 127 dB A-weighted) and THD+N in excess of - 116 dB (this latest number being actually close to the measurement limit of Merging Technology's Audio Precision equipment maxing at 118 dB THD+N).
While the above improvements of 1.5 to 2 dBs over the first generation won't hurt, the design has also incorporated new refinements by adding local Low Phase Noise Oscillator circuitry to further improve the absolute transparency and stereo image of an Analog signal, essentially void of both jitter and wander.
Key Features:
• Auto-mute circuitry for "no-pop" power cycling
• Digitally controlled trims for line up procedures
• Dynamic range of 127 dB (typ.)
• Low Phase Noise Oscillator circuitry
