Merging Technologis MADI Card 128 Channel & SFP Cages for Hapi MkIII
Price:
$2,233.00 (excl. GST)
Stock Code:
152337
Enquire for ETA
Description

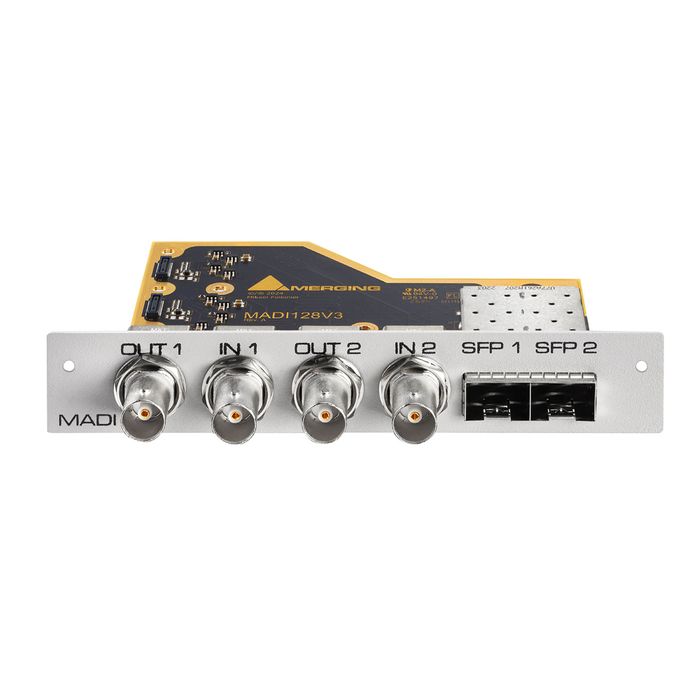

MADI Card 128 Channels with SFP cages for Hapi Mk III
The Merging MADI128V3 expansion card doubles the total MADI channel count to up to 128 inputs and 128 outputs @1FS for Hapi MkIII. The MADI128V3 is also equipped with a two slots Small Form-factor Pluggable (SFP) cages, suitable SFP modules can be fitted. SFP transceivers for optical multi-mode or single-mode for transmission or mini BNC for coaxial transmission are not included.
Key Features:
• Two pairs of MADI Coaxial inputs and outputs (4 X BNC connectors)
• 128 discrete channels of digital input and output (extended mode) at 1FS
• Up to 384 kHz sampling rate
• 24-bit resolution
• Fully compliant MADI (AES 10-1991)
• 2 x SFP Cages slots.
