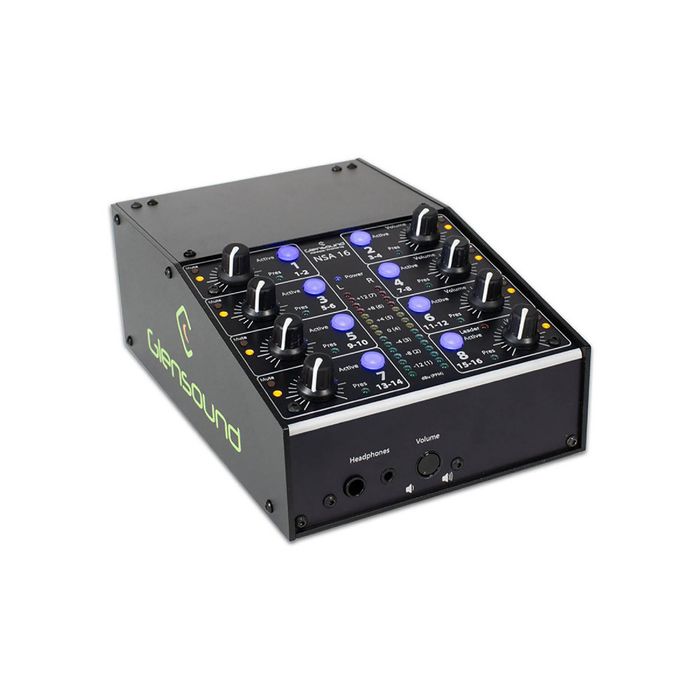

Glensound NSA16 Dante/AES67 Inline Network Signal Adjuster

Price:
$3,920.00 (excl. GST)
Stock Code:
152366
Enquire for ETA
Make an Enquiry

Description

  • Adjusts the signal level of 16 Dante/AES67 channels

  • 8 Stereo signals

  • Channel mute with signal present per pair

  • Primary and secondary Dante

  • SPF fibre modules available

  • PoE, Mains or DC powering options

  • Headphone output for monitoring with sprung recessed pot with 6.35mm, 3.5mm

  • Recall current level with visual cue.

  • VU meter to monitor signal levels

  • Also Available in AES67/Ravenna Version


    • NETWORK OPTIONS:

    DANTE/AES67 VERSION
    Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
    Type: Fully redundant primary & secondary circuits
    Sample Frequency: 48K
    Resolution: 24 Bit
    Control & Routing: Via Free Dante Controller
    AES67: Can be configured for AES67

    RAVENNA/AES67 VERSION
    Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
    Type: Fully redundant primary & secondary circuits
    AES67: Yes
    High Sample Rates: 44.1kHz - 192kHz
    PTPv2: Master or Slave, IEEE-1588-2008 standard
    SMPTE ST 2110-30: Yes. Including level C and CX
    SMPTE ST2022-7: Yes. Seamless data switching
    NMOS IS-04 (Disovery): Yes
    NMOS IS-05 Routing): Yes
    Remote Control: Web browser or Aneman
