RME HDSPe MADIface 128-CH 192 KHZ MADI PCI Express Card

Price:
$1,467.00 (excl. GST)
Stock Code:
145784
Enquire for ETA

Description

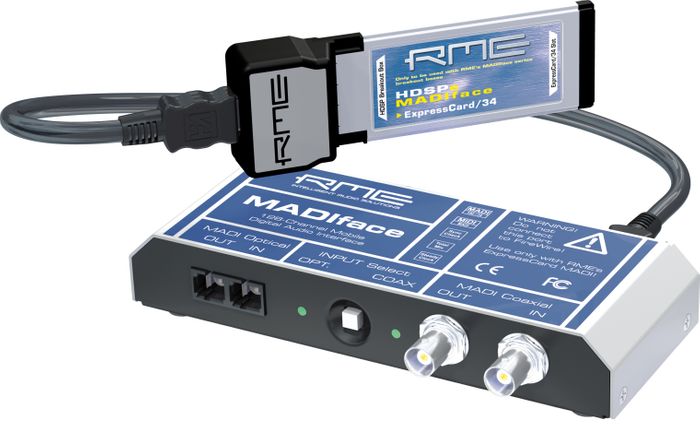

Looking for an ultra-portable MADI interface? Check out the RME HDSPe MADIface MADI ExpressCard interface! Small, lightweight, and portable, just like your laptop computer, the HDSPe MADIface gives you up to 64-in/64-out MADI connectivity, wherever you need it. The HDSPe MADIface breakout box connects to the included ExpressCard via a standard 6-pin FireWire cable, but the protocol it uses is much faster than standard FireWire. The HSPe MADIface offers full support for 56- and 64-channel MADI modes and sample rates up to 192kHz, including variable (Sync/DDS) format. The breakout interface also acts as a self-standing router/mixer, able to function as an optical patch bay/router, a converter/splitter, or even as a redistributor for your MADI system. The HSPe MADIface also includes software to make setup and diagnostics easy.

Key Features:

• Connects via ExpressCard (34mm standard)
• 1-lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1
• 250MB/s transfer rate per direction
• Secure BIOS Technology: card stays fully functional even when the flash process fails
• Output: IEEE 1394 connector (not compatible to FireWire)
• All settings changeable in real time
• Clock modes slave and master
• Automatic and intelligent master/slave clock control
• Sync sources: MADI coaxial, MADI optical, internal
• Varipitch: by input signal or word clock
• Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, variable (Sync/DDS)
• Jitter: < 1 ns, internal and all inputs
• Jitter sensitivity: PLL operates even at 100 ns Jitter without problems
• Comes with DIGICheck measurement, analysis, and test tool
• Input: MADI optical, MADI coaxial (BNC)
• Output: MADI optical, MADI coaxial (BNC)
• MIDI input and output: via virtual MIDI port and MADI transmission
