Blackmagic ATEM Mini Extreme ISO G2 Switcher
Description

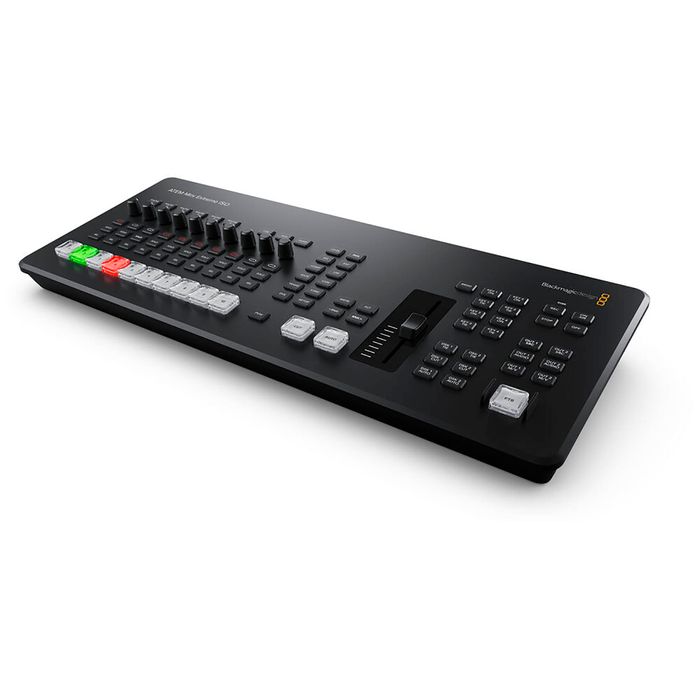

The ATEM Mini Extreme ISO G2 Switcher from Blackmagic Design is an updated 8-input live production switcher for live streaming with an integrated control panel and advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it were a webcam over USB. New features include a totally redesigned keyboard with multiple knob controls, large NKK red/green source select buttons, a hardware fader, a CFexpress slot and Thunderbolt port for recording, and a more functional button layout.
Updated Control Interface
Included on the ATEM Extreme ISO G2 are large source select buttons for audio mixing, recording, and streaming control, as well as output selection buttons that let you change the video output between cameras, program, and multiview. A new hardware fader allows additional tactile control. On the rear panel, there are HDMI connections for cameras or computers, XLR and MADI audio inputs, USB for webcam out, Thunderbolt for record/playback, and four HDMI outputs for program/preview video.
You can output using the Ethernet connection to your network or use the USB-C output to have your switched show recognized as a webcam input by virtually any video software such as Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster, and others.
M/E Switcher
Switch, add effects, color grade, and key in real time using the control surface's buttons or the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme ISO G2 supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. Designed for live streaming or webcam, the Mini Extreme ISO G2 has four HDMI outputs to feed monitors and supports up to 16-screen multiview.
ISO Output
The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB-C ports. The switcher automatically generates a DaVinci Resolve project file so you can clean it up and make changes later. This versatile switcher's eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.
Stream Live
The switcher is ideal for interviews as you can connect multiple cameras for close-ups of the host or interviewee, as well as wide shots of the space. Plus, ATEM Mini is so small the operator can even switch in small studios.
The ATEM Mini ISO G2 has a built-in hardware streaming engine for live streaming via the Ethernet connection without the need for a computer. That means you can live stream to YouTube, Facebook, and Twitch with high quality without dropped frames and with simpler settings. Just select the streaming service and enter the streaming key.
4G and 5G Phone Support
If you're doing live production on location, ATEM Mini Extreme models support connecting an Apple or Android phone to the USB port to use mobile data. It's also a great backup for the main Ethernet connection, so you don't drop your stream if your hardwired connection gets interrupted. The switcher will automatically switch to using the phone as the primary connection, and the USB port will also power your phone so the battery won't drain.
Key Features:
• 8-Channel HDMI Live Streaming Switcher
• All-New Design, Supports up to 1080p60
• 1G & 10G Ethernet Ports, CFexpress Slot
• 3 Independently Assignable HDMI Outputs
• 26-Input, 2-Channel Audio Mixer
• Input Frame Rate & Format Converter
• MADI Input, Analog Line/Mic XLR Inputs
• HD Multiview Output with up to 16 Views
• Dual USB-C & Thunderbolt Ports
• 4 Upstream, 2 Downstream Keyers
